PMD Integration with JDeveloper through Ant External Tools

After little code change in pmd the integration like described in some blogs from Shay Shmeltzer is now possible.

I use here JDeveloper 11.2.0.4, with other versions this should be very similar. Now let’s start:

Create a new folder
Download PMD 5.0.4
Extract the zip file into the created folder
Create a file pmd.xml into the created folder

Enter following code into the file pmd.xml:

<?xml version="1.0" encoding="windows-1252" ?>
<project xmlns="antlib:org.apache.tools.ant" name="Project1" default="all" basedir=".">
  <path id="classpathForPMD">
    <fileset dir="pmd-bin-5.0.4\lib">
      <include name="**/**.jar"/>
    </fileset>
  </path>
  <taskdef name="pmd" classpathref="classpathForPMD" classname="net.sourceforge.pmd.ant.PMDTask"/>
  <target name="pmdAll">
    <echo message="PMD is running on directory ${dir}" level="info"/>
    <pmd rulesetfiles="rulesets/internal/dogfood.xml" failOnRuleViolation="true" minimumPriority="1">
      <fileset dir="${dir}">
        <include name="**/src/**/*.java"/>
      </fileset>
    </pmd>
  </target>
  <target name="pmd">
    <echo message="PMD is running on file ${dir}\${file}" level="info"/>
    <pmd rulesetfiles="rulesets/internal/dogfood.xml" failOnRuleViolation="true">
      <fileset dir="${dir}">
        <include name="${file}"/>
      </fileset>
    </pmd>
  </target>
</project>

Select Tools > External Tools from the JDeveloper menu
Press Button New
Select Tool Type: Apache Ant

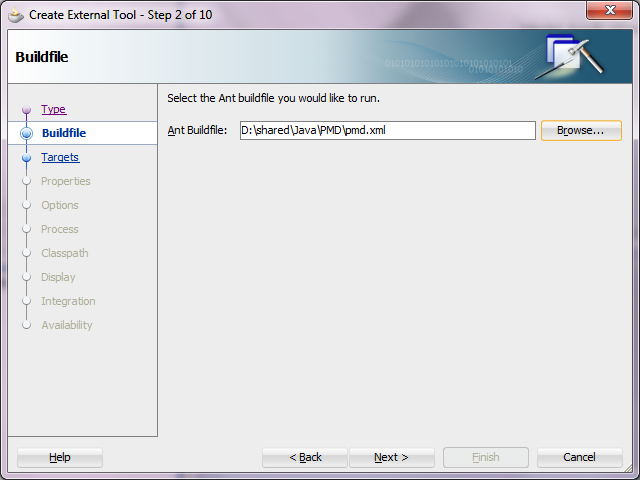

Select your created pmd.xml file in Ant Buildfile:

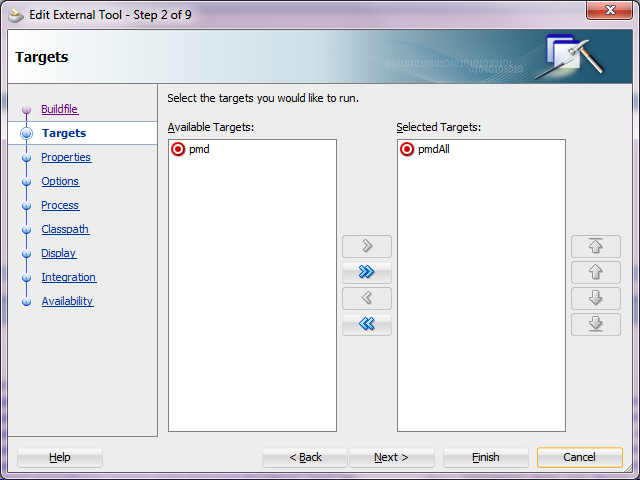

Shuttle target pmdAll to SelectedTargets

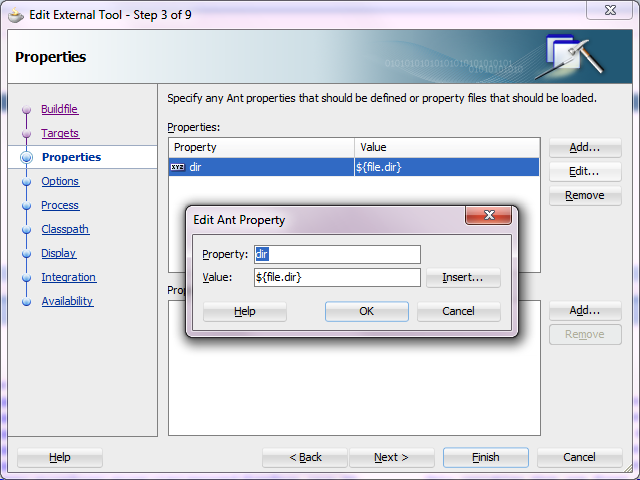

Add Property dir with value ${file.dir}
Skip the Options and Process Step to leave the defaults

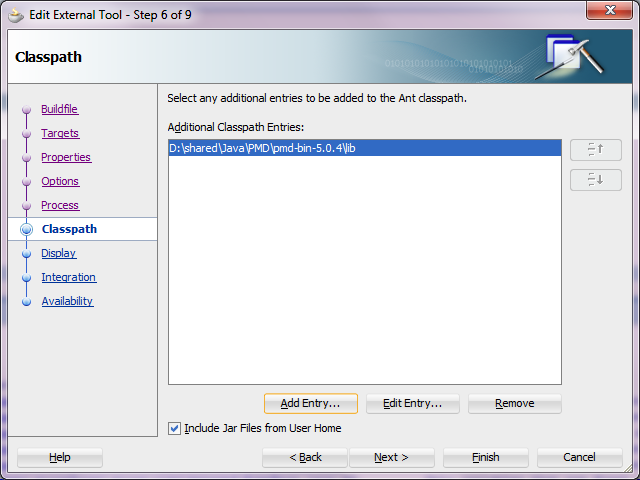

Add the lib directory of pmd as additional classpath entry

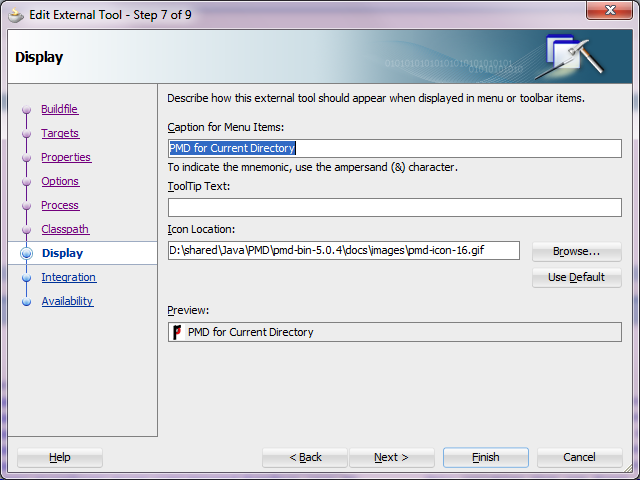

Enter Caption and Icon as you want

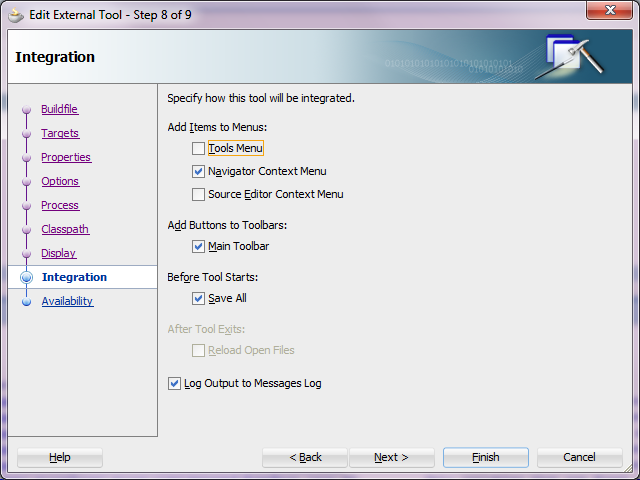

Add the tool to the Navigator Context Menu and Main Toolbar and do not forget to set Log Output to Messages Log
Press Next and Finish.

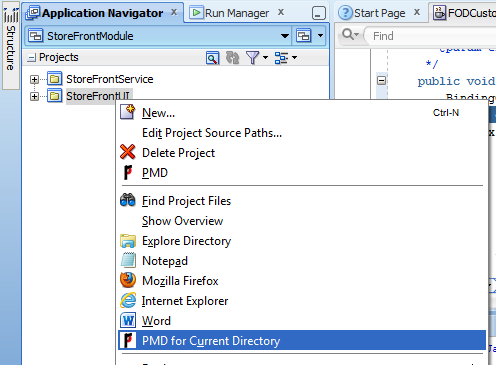

Now you can call pmd e.g. from the fusion order demo application:

PMD Integration with JDeveloper through Ant External Tools call pmd e.g. from the fusion order demo application

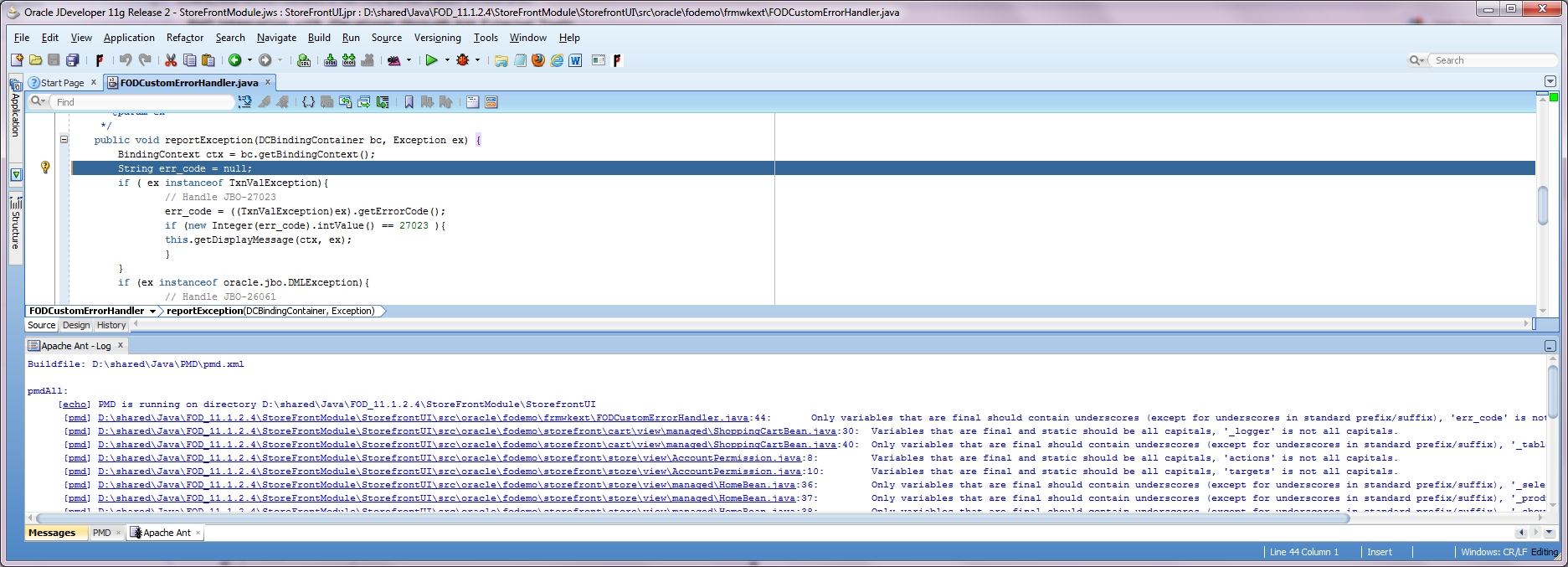

You see the results of the ant process in the message pane and you can click on the link to open the file and jump to the rule violation:

PMD Integration with JDeveloper through Ant External Tools results of the ant process in the message pane

In upcoming blogs I will show you how you can define your own rulesets (replacing the ones in pmd.xml) and how to use it with any kind of xml files, eg. jws, jpr, xcfg etc.
